How to use the feeder of placement machine

Feeder is an electronic component that feeds the placement machine through the feeder. There are many types of feeders for the placement machine. Different brands of feeders are not universal, but the usage methods are basically the same. We will tell you how to use the mounter feeder.

Choose the appropriate placement machine feeder according to the width, shape, size, weight, component spacing and type of electronic components.

For the most common reel material, the feeder is generally selected according to the width of the tape. Generally, the width of the tape is a multiple of 4, such as 8mm, 12mm, 16mm, 24mm, etc. Anti-static gloves must be worn for operation, and the feeder must be handled with care during the feeding process.

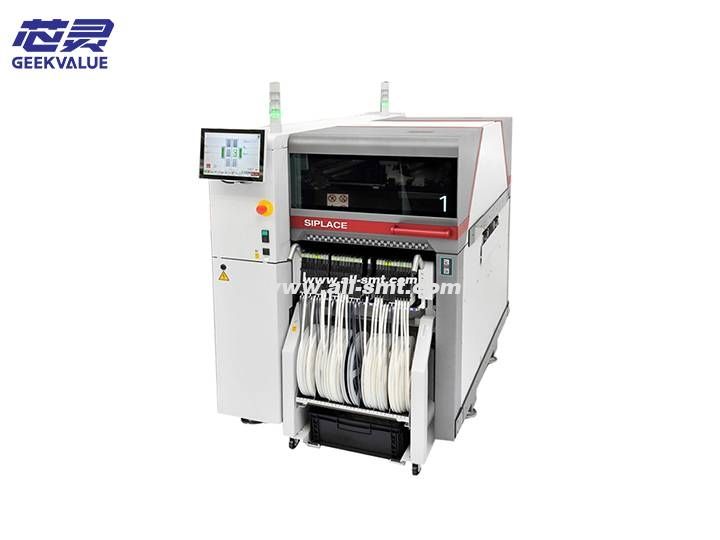

siplace chip mounter X feeders

00141478--4mm feeder

00141480--8mm feeder

00141500--8mm feeder

00141479--2X8mm feeder

00141499--2X8mm feeder

00141371--12mm feeder

00141391--12mm feeder

00141372--16mm feeder

00141392--16mm feeder

00141373--24mm feeder

00141394--32mm feeder

00141375--44mm feeder

00141376--56mm feeder

00141397--72mm feeder

00141398--88mm feeder

How to use the placement machine feeders (take the reel as an example)

1. Check the processed materials.

2. Determine the type of tape feeder used according to the width of the tape.

3. Check whether the selected feeder is abnormal during the patch processing.

4. Open the feeder, pass the braid through the muzzle of the feeder, and install the cover tape on the feeder as required.

5. Install the feeder on the feeding trolley. When installing, pay attention to the vertical placement of the feeder and the feeding table, handle with care, and wear electrostatic gloves.

6. When changing the plate and loading the material, first confirm the code and direction, and then load the material according to the direction of the feeding table.
