SIPLACE placement machine X series placement machine (Simens placement machine)

x3s  600  490

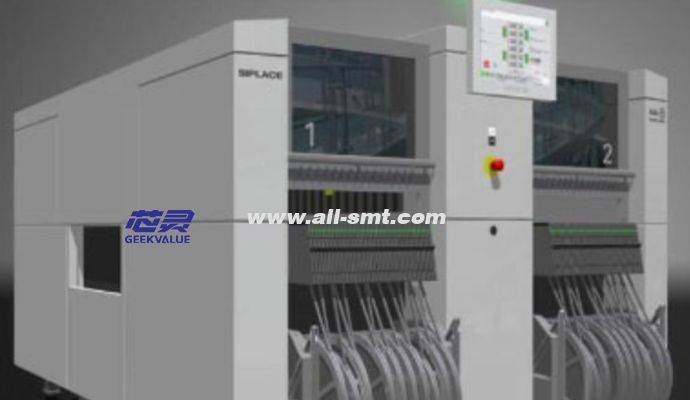

Siemens placement machine SIPLACE X3S


1. Machine characteristics: SIPLACE X3 S


2. Number of cantilevers: 3


3.IPC speed: 78,100cph


4. SIPLACE benchmark evaluation: 94,500cph


5. Theoretical speed: 127,875cph


6. Machine size: 1.9x2.3m


7. Mounting head characteristics: MultiStar


8. Component range: 01005-50x40mm


9. Mounting accuracy: ±41μm/3σ(C&P) ±34μm/3σ(P&P)


10. Angular accuracy: ±0,4°/3σ(C&P) ±0,2°/3σ(P&P)


11. Maximum component height: 11.5mm


12. Mounting force: 1,0-10 Newtons


13. Conveyor belt type: single track, flexible double track


14. Conveyor mode: asynchronous, synchronous


15. PCB format: 50x50mm-850x560mm


16. PCB thickness: 0.3-4.5mm (other sizes can be customized upon request)


17. PCB weight: maximum 3kg


18. Component supply and material supply


19. Feeder capacity: 160 8mmX feeder modules


20. Feeder module type:


SIPLACE component cart, SIPLACE matrix tray feeder (MTC), waffle tray (WPC5/WPC6),


JTF-S/JTF-MSIPLACE, X feeder, Tray plate, vibrating tube, vibrating feeder, customized OEM feeder module


21, Pickup rate: ≥99,95%


22, DPM rate: ≤3dpm


23. Lighting level: 6 levels of illumination


24. Note: Machine size is only for the main body of the equipment.


PCB format: Extended input and output rails allow board lengths up to 850mm
