Siemens placement machine E series HCU fault problems and solutions

admin 2023-11-30 324

SMT machines play an important role in electronic manufacturing, and as one of its core components, the E-series HCU (Head Control Unit) of Siemens SMT machines often encounters various failures. This article will introduce the common fault problems of Siemens E-series HCU of placement machines, and provide corresponding treatment methods to help maintenance personnel better solve the problems and improve the stability and work efficiency of the placement machine.

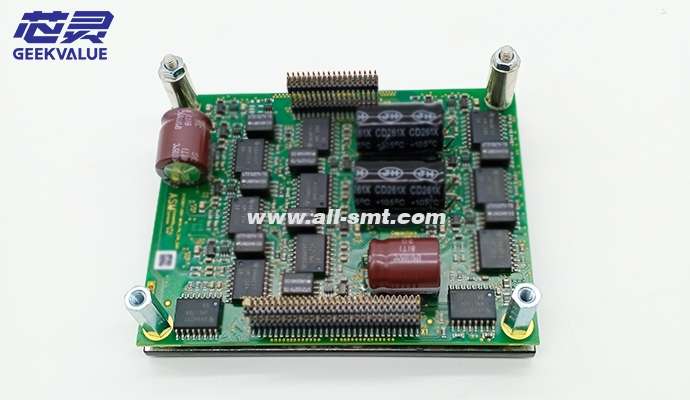

Geekvalue Industrial asm placement machine HCU

1694588454bf17d1

1. Fault problem 1: Siemens placement machine E series HCU cannot start


Solution: First, check whether the power supply is connected properly and make sure the power switch is on. Secondly, check whether the HCU connection line is loose

or disconnected. If the connection line is normal, you can try to restart the HCU. If the problem persists, the HCU itself may be faulty and you need to contact the supplier for repair or replacement.


2. Fault problem 2: Siemens placement machine E series HCU runs slowly or freezes


Solution: First, check the memory usage of the HCU. If the memory usage is too high, you can try to clean up unnecessary caches or temporary files to free up memory space.

Secondly, check whether the HCU's hard disk space is sufficient. If there is insufficient hard disk space, you can delete unnecessary files or clean the hard disk.

If the above method does not work, it may be that the hardware configuration of the HCU is insufficient and you need to upgrade the hardware or replace the HCU with a higher configuration.


3. Problem 3: An error message appears on the Siemens placement machine E series HCU


Processing method: Carry out corresponding processing according to the error prompt. For example, if it prompts that the HCU temperature is too high,

you can check whether the cooling system is running normally, check whether the cooling fan is working properly, and clean the dust and debris on the fan.

If it prompts that HCU communication fails, you can check whether the communication line is loose or damaged, and reconnect or replace the communication line.

If the above method does not work, you can try to restart the HCU or contact the supplier for further troubleshooting and repair.


4. Fault problem 4: Mounting error occurs in Siemens placement machine E series HCU


Treatment method: First, check whether the calibration of the placement machine is correct, and perform calibration operations according to the operation manual

of the placement machine. Secondly, check whether the sensor of the placement machine is working properly. You can use professional testing instruments for testing.

If the patch error problem still exists, there may be a problem with the HCU's control algorithm, and you need to contact the supplier for further troubleshooting and repair.


5. Problem 5: Abnormal sound or vibration occurs in Siemens E series HCU of placement machine


Treatment method: First, check whether the mechanical parts of the placement machine are loose or damaged, tighten loose parts or replace damaged parts.

Secondly, check the lubrication of the placement machine. If insufficient lubrication may cause friction and noise, add an appropriate amount of lubricating oil in time.

If the abnormal sound or vibration problem persists, there may be a problem with the HCU's motor or transmission system, and you need to contact the supplier for further troubleshooting and repair.

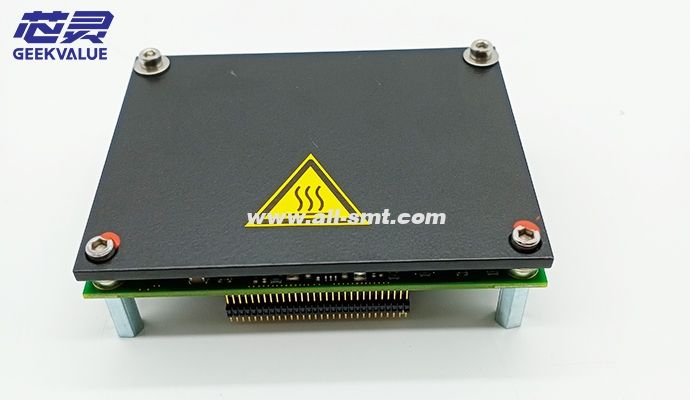

Geekvalue Industrial asm placement machine HCU board

1694588499aadbc7

As the core component of the Siemens placement machine E series HCU, it often encounters various fault problems. This article introduces common fault problems

and provides corresponding solutions. When facing a malfunction of the E-series HCU of the placement machine, it is crucial to take corrective measures in a timely manner.

However, for some complex fault problems, professional maintenance technology and equipment may be required to solve them. As a professional maintenance company

 with many years of experience, our company Xinling Industrial is committed to providing high-quality patch machine maintenance services.


We have an experienced maintenance team who are familiar with the structure and working principles of various placement machines. We have also invested in advanced

maintenance equipment and tools to be able to accurately diagnose faults and take effective repair measures. Whether it is HCU communication failure, placement error,

abnormal sound or vibration, we can quickly locate and solve the problem.


In addition, we also provide quick response and excellent after-sales service. We understand the impact of maintenance failures on the production line, so we will try our

best to shorten the maintenance time to ensure that your production runs normally. Our goal is to provide customers with comprehensive maintenance solutions to help

them reduce maintenance costs and improve equipment reliability and productivity.


If your Siemens placement machine E series HCU fails, whether it is a simple problem or a complex failure, we can provide you with professional maintenance services.

Please contact our customer service team to learn more about our repair capabilities and service commitment. We look forward to working with you to solve your placement machine failure problems.
