The difference between SIPLACE medium-speed placement machine and high-speed placement machine

The placement machine is a key equipment in the SMT production line, mainly used for the placement of electronic products. According to the actual production needs, the placement machines have different speeds. It can be mainly divided into several types of placement machines such as ultra-high-speed placement machines, high-speed placement machines, medium-speed placement machines and low-speed placement machines. So do you know how to distinguish between a medium-speed placement machine and a high-speed placement machine? Geekvalue Industry will share with you.

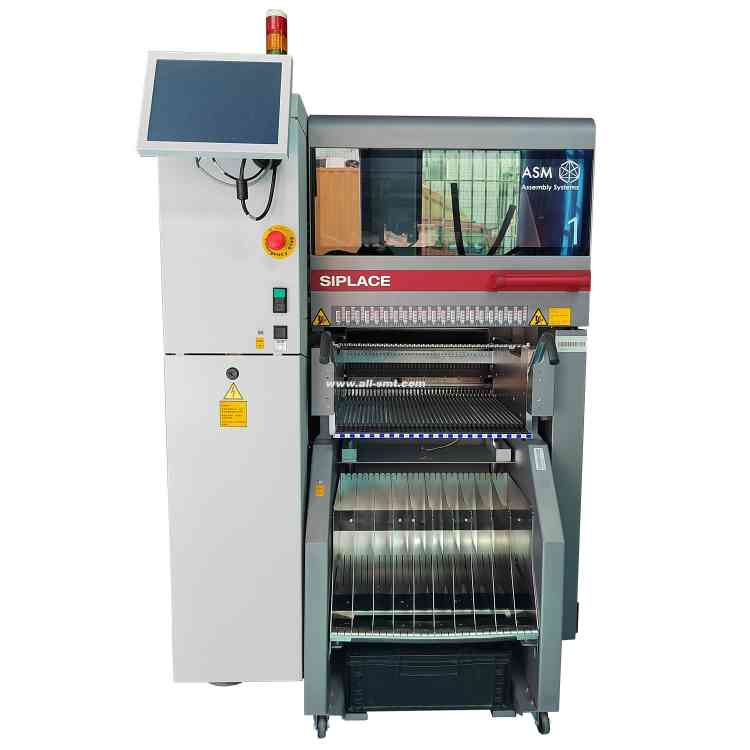

SIPLACE E Series Medium Speed Mounter

1. Distinguish from the placement speed of the placement machine

The theoretical placement speed of medium-speed placement machines is generally about 30,000 cp/h (chip components); the theoretical placement speed of high-speed placement machines is generally 30,000-60,000 cp/h per hour.

2. Distinguishing products from placement machines

The medium-speed placement machine can mainly be used to mount large components, high-precision components and special-shaped components, and can also mount small chip components; the high-speed placement machine can mainly be used to mount small chip components and small integrated components.

3. Distinguish from the machine structure of the placement machine

Most of the medium-speed placement machines adopt an arch structure, which is relatively simple in structure, poor in placement accuracy, small in footprint, and low in environmental requirements; the structure of high-speed placement machines is more commonly used in rotary The tower structure also mostly adopts a composite structure, which can achieve high-speed placement while meeting the precision of miniature chip component placement.

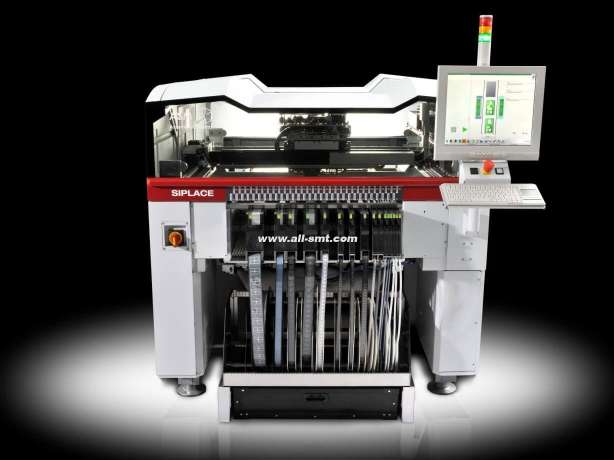

SIPLACE TX series high-speed placement machine

4. Distinguish from the scope of application of the placement machine

Medium-speed placement machines are mainly used in some small and medium-sized electronic production and processing enterprises, R&D and design centers, and production enterprises with multiple varieties and small batches; high-speed placement machines are mainly used in large-scale electronic manufacturing enterprises and some professional original equipment manufacturing enterprises ( OEM) widely used.

Through the introduction of the above four distinction methods, we can see that medium-speed placement machines and high-speed placement machines can be mainly distinguished by placement speed, machine structure, placement products, and scope of application. Generally, most of the manufacturers that use high-speed placement machines are enterprises with relatively large production batches, and most of the small and medium-sized SMT manufacturers and products with more complex placement components use medium-speed placement machines.
