SIPLACE Siemens placement machine specification model SIPLACE X3S technical parameters

SIPLACE placement machine X series placement machine (Simens Siemens placement machine)

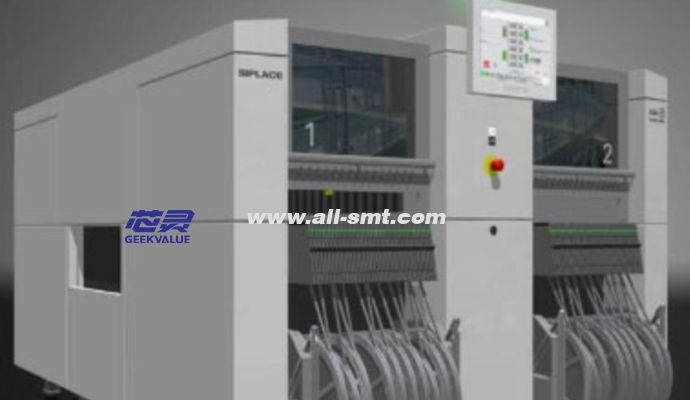

Siemens placement machine SIPLACE X3S

1, Machine model: SIPLACE X3 S

2, Number of cantilevers: 3

3, IPC speed: 78,100cph

4. SIPLACE benchmark evaluation: 94,500cph

5. Theoretical speed: 127,875cph

6. Machine size: 1.9x2.3m

7, Mounting head features: MultiStar

8, Component range: 01005-50x40mm

9. Mounting accuracy: ±41μm/3σ(C&P) ±34μm/3σ(P&P)

10. Angular accuracy: ±0,4°/3σ(C&P) ±0,2°/3σ(P&P)

11, the maximum component height: 11,5mm

12. Placement force: 1,0-10 Newton

13. Conveyor belt type: single track, flexible double track

14. Conveyor belt mode: asynchronous, synchronous

15, PCB format: 50x50mm-850x560mm

16, PCB thickness: 0,3-4,5mm (other sizes can be customized according to requirements)

17, PCB weight: maximum 3kg

18. Component supply and supply

19. Feeder capacity: 160 8mmX feeder modules

20. Feeder module type:

SIPLACE component trolley, SIPLACE matrix tray feeder (MTC), waffle tray (WPC5/WPC6),

JTF-S/JTF-MSIPLACE, X Feeder, Tray, Vibrating Tube, Vibrating Feeder, Customized OEM Feeder Module

21. Pickup rate: ≥99,95%

22, DPM rate: ≤3dpm

23. Illumination level: Level 6 illumination

24. Remarks: machine size, only for the main body of the equipment

PCB Format: Extended I/O rails allow board lengths up to 850mm
