Used High Speed Solder Paste Printer, Stencil Printer, Screen Printer, Mx Plus
Basic Info.
Model NO.
MX PLUS
Production Scope
Product Line
Flexible Production
Intelligent Manufacturing
Certification
ISO, CE
Automation
Automation
After-sales Service
Technical Support, Maintenance Services
Maximum Board Size(X X Y)
510mm X 510mm
Minimum Board Size(Y X X)
50mm X 50mm
Printing Mode
Single or Double Scraper Printing
Printing Precision
15.0 Micron
Warranty
One Year Free Warranty
Transport Package
Wooden Box
Specification
1140mm(L) x 1450mm(W) x 1480mm(H), Around 1000Kg
Trademark
GDK
Origin
Shenzhen China
HS Code
8479899990
Production Overview:

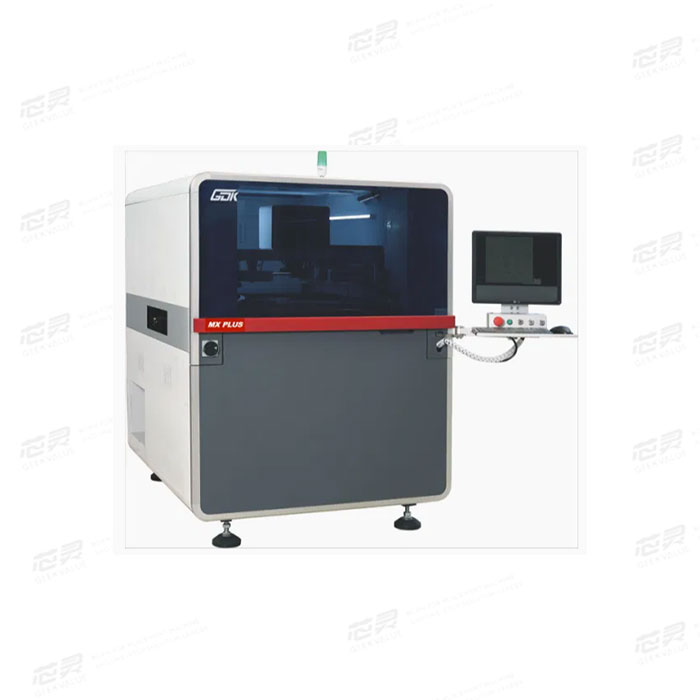

MX PLUS automatic solder paste printer is a product aimed at the-high-end application of SMT, especially for precision boards of 01005 or below, it has better molding and soldering volume. It can be placed back to back or used by a single machine. Printing range is 510mmx510mm.With CE Certificate/ Award Certificate/ Software work Certificate/ Software ework Certificat/ Certificate of Authorization.
Technical Parameters:
Technical Parameters:
| PCB boarding Handling Paramater | |
| Max. board Size(X x Y) | 510mm x 510mm |
| Min. board Size(X x Y) | 50mm x 50mm |
| PCB thickness Range | 0.4mm~6mm |
| PCB Warpage | ≤1%Diagonal |
| Max. board weight | 3Kg |
| PCB edge clearance | Configuration to 3mm |
| PCB bottom clearance | 20mm |
| Conveyor speed (Max.) | 1500mm/s(Max) |
| Conveyor height | 900±40mm |
| Conveyor direction | L-R,R-L,L-L,R-R |
| Transfer mode | One stage Conveyor |
| PCB Clamping method | Automatic adjustment of PCB thickness + Programmable elastic side clamp (Option:1.Edge locking base plate pressing;2.Bottom integral cavity vacuum; 3.Bottom multi-point local vacuum) |
| Support method | Magnetic thimble + Equal high block.(Optional:1.vacuum suction cavity;2.special workpiece fixture) |
| Printing parameters | |
| Printing head | Floating intelligent printing head (two independent direct connected motors) |
| Stencil frame size | 470mm x 370mm~737 mm x 737 mm |
| Max. printing area(X x Y) | 510mm x 510mm |
| Squeegee Material/Angle | Steel squeegee/ Rubber squeegee(Angel 45°/50°/60° matching the printing process) |
| Squeegee length | 300mm+520mm(optional with length of 200mm-550mm) |
| Squeegee height | 65±1mm |
| Squeegee thickness | 0.25mm Diamond-like carbon coating |
| Print mode | Single or dual squeegee printing |
| Demoulding length | 0.02 mm - 12 mm |
| Print speed | 0 ~ 200 mm/s |
| Print pressure | 0.5kg - 10Kg |
| Print stroke | ±275 mm(From the center) |
| Cleaning parameters | |
| Cleaning system | 1.Programmable washer fluid injection system; 2. Dry, wet and vacuum modes |
| Length of cleaning and wiping board | 380mm+500mm(optional with 300mm, 450mm) |
| Optical System | |
| Field of view | 8mm x 6mm |
| Printing table adjustment range | X:±5.0mm,Y:±7.0mm,θ:±2.0° |
| Fiducial Types | Standard Fiducial type(Circle, triangle, square, diamond, cross)(SMEMA standard),solder pad/openings |
| Vision methodology | Independent camera,upwards/downwards imaging vision system,geometric matching location |
| Performance parameters | |
| Machine Alignment repeatability | ±10.0μm @6 σ,Cpk ≥ 2.0 |
| Full process repeatability | ±15.0μm @6 σ,Cpk ≥ 2.0 |
| Core Cycle time | 7.5s(Exclude printing and cleaning) |
| Product Changeover Time | <5min |
| Equipment | |
| Power supply | AC220V±10%,50/60HZ,15A |
| Air supply | 4~6Kg/cm² |
| Air Consumption | About 5L/min |
| Operating system (OS) | Windows XP (Option Win 7 & WIN10) |
| External dimension | 1220mm(L) x1480mm(W) x 1530mm(H)(Without light,monitor and keyboard) |
| Machine weight | Appro.1150Kg |
| User Permission | Different users have different permissions (fingerprint identification entering / password input) |
| Environment temperature | 23±3°C |
| Relative humidity | 45~70%RH4 |
Our Advantages
1st,We have strict inspection standards for the quality of our products, which has formed a high-standard process system;
2nd,We have a strong price advantage, absolute price advantage is the best choice for customers;
3rd, our business philosophy: "Customer first, Quality first " Principle;
4th, We are a big international brand level agents and over the years we accumulated a high quality customer resources;
5th, We have a global sourcing, huge demand we can reduce the purchase cost. More new accessories supply to ensure our sustainable supply and price advantage.
Successful Experience:
Xlin's customer in 30 countries around the world
We have been helping customers to build a lot of new factories around the world.
We hope Became the most reliable Chinese partner for you.
