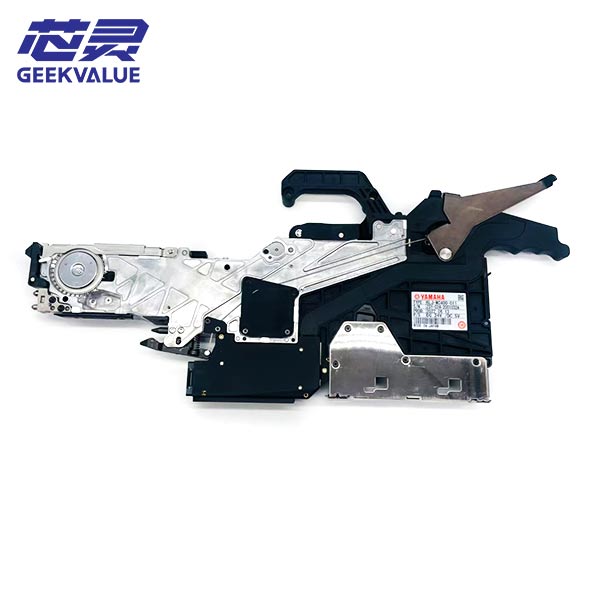

yamaha montážny podávač 24mm PN:KLJ-MC400-011

‌Yamaha SMT 24MM Feeder‌ is a commonly used feeder model in the Yamaha SMT series, mainly used for the production of SMT electronic components. Its main application scope is as follows:

‌Model‌: YS24, YG100, YV100X, YSM20, YSM20R, YSM40

‌Component size range‌: Different models of feeders are suitable for components of different sizes, for example, YS24 is suitable for components of 0201-32mm x 32mm, YG100 is suitable for components of 0201-45mm x 45mm, YSM20 is suitable for components of 01005-22mm x 22mm, and YSM40 is suitable for components of 01005-45mm x 45mm‌.

‌Maximum component height and weight‌: For example, the maximum component height of YS24 is 6.5mm, the maximum component weight is 1g, and the operating speed is 0.09 seconds/stick; the maximum component height of YG100 is 15mm, the maximum component weight is 3g, and the operating speed is also 0.09 seconds/stick; the maximum component height of YSM20 and YSM20R is 6.5mm, the maximum component weight is 1g, and the operating speed is 0.10 seconds; the maximum component height of YSM40 is 12mm, the maximum component weight is 3g, and the operating speed is 0.06 seconds‌.

Selection and use precautions

When selecting and using the Yamaha SMT machine 24MM feeder, you need to pay attention to the following points:

‌Choose the appropriate feeder model according to actual needs‌, and ensure that the parameters such as component size, weight and height meet the requirements to ensure the quality of the patch.

‌Choosing a feeder with automatic centering and automatic feeding functions‌ can improve production efficiency and patch accuracy.

‌ Clean and maintain the feeder regularly to keep it in the best condition and ensure the normal operation of the equipment and the quality of the patch.

Through the above introduction, you can better understand the scope of application and precautions of the 24MM feeder of the Yamaha patch machine.
