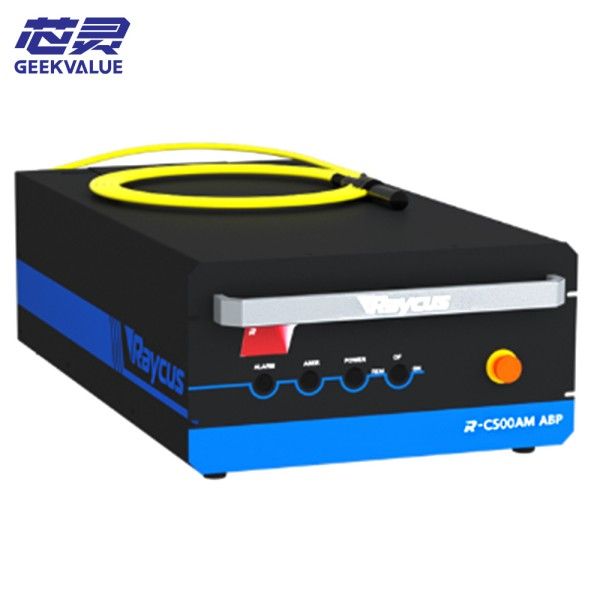

Raycus Fibre Laser R-C500AM ABP

R-C500AM ABP ya Raycus ni lazeri ya 500W amplitude modulée (AM) ya fibre laser, ikaba iri murwego rwa Raycus 'ABP (Advanced Beam Profile) kandi igenewe gusudira neza kandi bikenewe cyane. Inyungu yibanze yibanze muburyo bwo guhinduranya urumuri, rushobora guhuza ibikenewe nibikoresho bitandukanye hamwe nibisabwa.

1. Ibyiza byingenzi

(1) Uburyo bwo guhinduranya ibiti (tekinoroji ya ABP)

Uburyo bwo guhinduranya urumuri (nka Gaussian mode / annular spot) kugirango uhuze ibikenewe bitandukanye:

Uburyo bwa Gaussian (hagati ikomeye ikomeye): bukwiranye no gusudira byimbitse no gukata byihuse.

Uburyo bwa buri mwaka (gukwirakwiza ingufu zingana): kugabanya spatter kandi birakwiriye gusudira ibikoresho byerekana cyane nka aluminiyumu n'umuringa.

Hindura neza imiterere yikibanza kugirango uhindure ubuziranenge bwo gusudira no kugabanya imyenge nibice.

(2) 500W imbaraga nyinshi + ubuziranenge bwo hejuru (M²≤1.2)

Birakwiriye gutunganya ibintu byinshi (nk'ibyuma bidafite ingese na aluminiyumu yo gusudira).

Ubwiza buhanitse butanga umwanya muto, ubwinshi bwingufu hamwe no gutunganya neza neza.

(3) Ubushobozi bukomeye bwo kurwanya ibikoresho byerekana cyane

Yemera igishushanyo mbonera cyo kurwanya, gikwiranye no gusudira ibikoresho byerekana cyane nk'umuringa, aluminium, urupapuro rwa galvanis, n'ibindi, kugirango bigabanye ibyago byo kwangirika kwa laser.

(4) Guhagarara neza no kuramba

Yemeza tekinoroji ya fibre ya Raycus yigenga, gukoresha amashanyarazi ya optique ≥35%, ubuzima bwamasaha 100.000.

Sisitemu yo kugenzura ubushyuhe bwubwenge kugirango ikore igihe kirekire.

(5) Igenzura ryubwenge

Shyigikira itumanaho RS485 / CAN kandi irashobora guhuzwa numurongo wibyakozwe byikora.

Gukurikirana imbaraga-nyayo kugirango tumenye neza gutunganya.

2. Ibyingenzi byingenzi bisabwa

(1) Gusudira neza

Amashanyarazi yo gusudira (tabs, selile ya batiri, busbar).

3C ibikoresho bya elegitoronike (terefone igendanwa hagati, moderi ya kamera).

Ibice byimodoka (sensor, amazu ya moteri).

(2) Gutunganya ibikoresho bidasanzwe

Gusudira umuringa na aluminium (gabanya spatter no kuzamura umusaruro).

Gusudira ibyuma bidasa (nk'umuringa + aluminium, ibyuma + aluminium).

(3) Gukata cyane

Gukata neza ibyuma byoroheje (nkibikoresho byubuvuzi, ibice byuzuye).

3. Ibyiza ugereranije na fibre isanzwe

Ibiranga R-C500AM ABP Ibisanzwe 500W fibre laser

Uburyo bw'igiti Guhindura (Gaussian / impeta) Igiti gihamye cya Gaussian

Guhuza n'ibikoresho byerekana cyane Birakomeye (igishushanyo mbonera cyo kurwanya) Rusange (byoroshye kugaragarira amaso)

Kuzenguruka ubuziranenge Buke spatter, porosity nkeya Byinshi

Ibihe byakurikizwa gusudira Umuringa-aluminium, gusudira ibyuma bidasa nicyuma gisanzwe / gusudira ibyuma bidafite ingese

4. Inganda zikoreshwa

Inganda nshya zingufu (bateri yingufu, ububiko bwo kubika ingufu).

3C ibikoresho bya elegitoronike (gusudira neza ibikoresho bya elegitoroniki).

Gukora ibinyabiziga (moteri, bateri yo gusudira).

Ibikoresho byubuvuzi (gutunganya ibyuma bisobanutse neza).

5. Incamake

Agaciro shingiro ka Raycus R-C500AM ABP ni:

Igiti gishobora guhinduka kugirango gihuze nibikoresho bitandukanye (cyane cyane ibyuma byerekana cyane).

Umucyo ukomeye wo kurwanya kugaruka, utezimbere ubuzima bwa laser.

Ubwiza bwo gusudira cyane, gabanya spatter na pore.

Igenzura ryubwenge, ribereye kwishyira hamwe
