Byakoreshejwe SMT Imashini Umurongo Dek Stencil Mucapyi
Amakuru Yibanze.
Imikorere ntarengwa y'uruganda rukora ubwenge

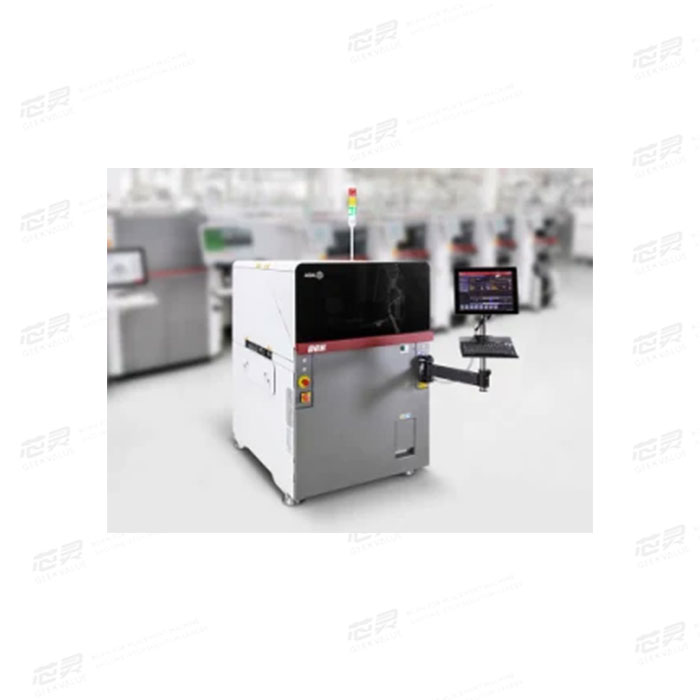

DEK TQ iranga igisekuru kizaza cya printer ya stencil. Byashizweho kuva hasi, iki gisekuru gishya cya printer ya DEK kirihuta, kirasobanutse neza, gifite imbaraga hamwe no gufata neza cyane hamwe nigihe kinini cyo gukora, kandi byoroshye kwinjiza mumurongo wawe. Imiyoboro mishya yumurongo, icapiro ryumukandara hamwe nuburyo bushya bwo gufunga sisitemu byemeza urwego rushya rwukuri kandi rutanga uburyo bwo gucapa buhamye - ndetse no mubice 0201 byanyuma. Muri DEK TQ nshya, ibisobanuro n'umuvuduko ntibishobora gutandukana kugirango uhuze ibyifuzo byawe biri imbere. Ubwikorezi bushya bwibyiciro 3 hamwe na ASM NuMotion idasanzwe hamwe na fibre optique itumanaho bigabanya igihe cyizunguruka kugeza kumasegonda 5 kandi bigatanga imikorere-yuzuye murwego ruto rushoboka.
DEK TQ Udushya
Byatunganijwe bishya munsi ya Stencil Cleaner
Umuzingo munini cyane, ushobora gusimburwa byoroshye umubiri wogusukura, sisitemu nshya yo gukwirakwiza itangazamakuru ryogusukura, umurongo wigenga utwarwa nigitereko cyamazi hamwe nisuku idahagarara
Icapiro rishya
Ububiko bwa paste yuburebure bwuzuye, disiketi yuzuye yimashini hamwe nudushya dushya twigenzura
Sisitemu nshya yo gutwara ibyiciro 3
Sisitemu yo guhinduranya ibyiciro 3 byubuyobozi hamwe na drives yumurongo, umugenzuzi wa ASM NuMotion, sisitemu nshya yo gufunga no gucapa umukandara.
Ibi bishya biguha inyungu zo guhatanira:
Umubare ntarengwa winjiza
Igihe cyizunguruka: amasegonda 5
Ubwiza ntarengwa no gucapa ubuziranenge
Ibyiza byo kugurisha paste icapiro ryibisekuru bishya byibintu bito-bito nka 0201 metric
Ubushobozi bwo guhuza sisitemu kugeza ± 12.5 µm @ 2 Cmk
Kwandika neza neza kugeza kuri ± 17.5 µm @ 2 Cpk (byapimwe kandi byemejwe na sisitemu yo hanze ya AVS mbere yo gutanga buri DEK TQ)
Ubwikorezi bwihuse kandi bworoshye ibyiciro 3
Sisitemu yuzuye yo gutwara ibyiciro 3 hamwe nuburyo bushya bwo gufunga no gucapa umukandara kugirango byihute, byuzuye kandi bihamye
Kugera kumasaha 8 nta mfashanyo
USC nshya hamwe nigitambambuga kinini-kinini hamwe nogusukura amazi, icapiro rishya hamwe na sisitemu nshya yo gucunga paste
Fungura, byoroshye guhuza
IPC-Hermes-9852, ifunze-ifunguye kuri SPI, ASM OIB, IPC CFX
Gutegura neza
Porogaramu nshya yuzuye intuitive hamwe na ASM Icapiro rya porogaramu ya ASM
Imikorere myiza ya etage
Uburebure bwa metero kare 1,3 gusa
Gusubira inyuma
Igisubizo cyiza kumirongo ibiri
Ubwoko bwimashini | TQ DECK |
Iboneza bisanzwe | Ibisobanuro |
Ubushobozi bwo guhuza imashini | > 2,0 Cmk @ ± 12,5 μ m, (± 6 sigma) |
Ubushobozi bwo gucapa | > 2,0 Cpk @ ± 17,5 mm, (± 6 sigma) |
Igihe cyizunguruka | Amasegonda 5 |
Ahantu hacapwe cyane | 400 mm (X) × 400 mm (Y) (uburyo bumwe) |
Kugenzura imashini | Sisitemu yo kugenzura NuMotion |
Kamera ihagaze | Moteri yumurongo hamwe na kodegisi-yuzuye |
Uburyo bwo kotsa igitutu | Porogaramu igenzurwa, ifite moteri hamwe n'ibitekerezo bifunze |
Ikibanza cyerekana | Gutwara ibintu byikora birimo gusunika igitonyanga |
Ingano yerekana (min.) | Mm 50 (X) × 40,5 mm (Y) |
Ingano yubunini (max.) | 250 mm (X) × 400 mm (Y) (uburyo bwa 3) |
400 mm (X) × 400 mm (Y) (uburyo bumwe) | |
400 mm (X) × 400 mm (Y) (ibyiciro 3 hamwe no kwagura ubwikorezi) | |
Ibipimo bigereranijwe | 1,300 mm (L) × 1.000 mm (W) × 1,600 mm (H) |
